Troubleshooting and Debugging

• Troubleshooting : the process of identifying, analyzing and solving problems.

• Debugging : the process of identifying, analyzing and removing bugs in a system.

• Troubleshooting is for infrastructure

• tcpdump, wireshark
• strace, ltrace
• ps, top etc
• Debugging : is for Software application
• Debugger : follows the code line by line , inspect changes in variable assignments, interrupt the program when a specific condition is met and more

Steps to solve any issue

• Getting Information to understand the problem
• Isolate and finding the root cause
• Performing the necessary remediation
• Document what we do
• The different things we tested to try
• Figure out the root cause.
• The steps we took to fix the issue.

strace & ltrace

// TODO complete this section x

strace : to trace system calls made by the program

• o file.strace : to save output of trace to a file

Main steps to solving any issue ?

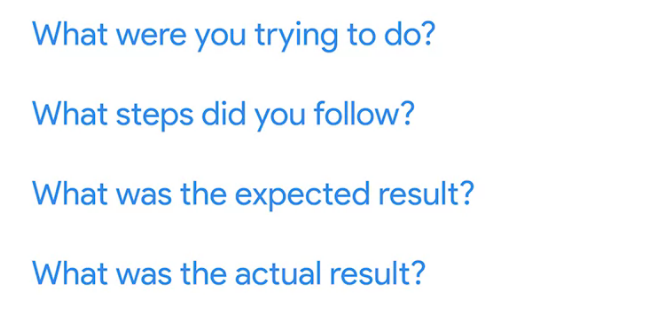

Questions to Ask before debugging

• Isolating the root cause is super important

Reproduction Case

Refer logging

• Linux // TODO get types of logs to investigate in linux
• /var/log/syslog
• .xsession-errors
• MacOS : Library/Logs/
• Windows : EventViewer

Our solution dont come up by wandering about things, we have to look at information to plug things into our knowledge graph, looking at error messages or documentation.

• Get a reproduction, try to isolate the problem
• Understanding the root cause is super important

Usefull Commands

top & uptime Load Average

• Load average : amount of time the process is busy in a minute
• Load average 1 means it was busy for whole min.
• shouldn’t be above the amount of process in computer
• The 3 values indicate 1 min , 5 min, 15 min
• must be less than CPU cores.

# uptime
13:36:43 up 6 min,  1 user,  load average: 0.26, 0.12, 0.04

#top
top - 15:24:23 up  1:53,  1 user,  load average: 0.08, 0.06, 0.06
Tasks:  44 total,   1 running,  43 sleeping,   0 stopped,   0 zombie
%Cpu(s):  2.2 us,  2.2 sy,  0.0 ni, 93.3 id,  1.1 wa,  0.0 hi,  1.1 si,  0.0 st
MiB Mem :   1971.8 total,    845.8 free,    961.2 used,    351.5 buff/cache
MiB Swap:   1024.0 total,   1019.7 free,      4.3 used.   1010.6 avail Mem

iostat :

system monitoring tool that reports CPU and I/O statistics for devices and partitions.

Linux 5.15.167.4-microsoft-standard-WSL2 (skynet-e14-r3)        02/16/25        _x86_64_        (8 CPU)

avg-cpu:  %user   %nice %system %iowait  %steal   %idle
           0.24    0.00    0.24    0.06    0.00   99.45

Device             tps    kB_read/s    kB_wrtn/s    kB_dscd/s    kB_read    kB_wrtn    kB_dscd
/dev/sda               0.17        11.45         0.00         0.00      74445          0          0
/dev/sdb               0.03         0.35         0.64         0.00       2292       4184          0
/dev/sdc              12.81       294.03       297.25       197.97    1911161    1932064    1286760

iotop :

Utility that displays real-time I/O usage by processes or threads on a Linux system.

Total DISK READ:         0.00 B/s | Total DISK WRITE:         0.00 B/s
Current DISK READ:       0.00 B/s | Current DISK WRITE:       0.00 B/s
    TID  PRIO  USER     DISK READ DISK WRITE>    COMMAND                                                                                                                                         1 be/4 root        0.00 B/s    0.00 B/s init
      2 be/4 root        0.00 B/s    0.00 B/s init
      9 be/4 root        0.00 B/s    0.00 B/s init [Interop]
      7 be/4 root        0.00 B/s    0.00 B/s plan9 --control-socket 7 --log-level 4 --server-fd 8 --pipe-fd 10 --log-truncate
      8 be/4 root        0.00 B/s    0.00 B/s plan9 --control-socket 7 --log-level 4 --server-fd 8 --pipe-fd 10 --log-truncate

vmstat :

Vmstat is a performance monitoring tool that provides information about processes, memory, paging, block I/O, traps, and CPU activity. - imp parameter : wa -> means wait time

procs -----------memory---------- ---swap-- -----io---- -system-- -------cpu-------
 r  b   swpd   free   buff  cache   si   so    bi    bo   in   cs us sy id wa st gu
 0  0   4388 236800   3740 532620    0    0   187   174  228    0  0  0 99  0  0  0

iftop :

iftop is a network monitoring tool that displays bandwidth usage on an interface by host.

• time : to calculate time taken by program to complete

  uday@skynet-e14-r3:~/notebook$ time

  real    0m0.000s
  user    0m0.000s
  sys     0m0.000s


• kill command // TODO get types of kill commands

Like isolating causes, understanding error messages, adding logging information, and generating new ideas for possible failures.
