GCP Core Infrastructure

Why Core Infrastructure

Identify the purpose and value of Google Cloud
Choose best deployment environment
Choose storage options
Interact and experience google cloud

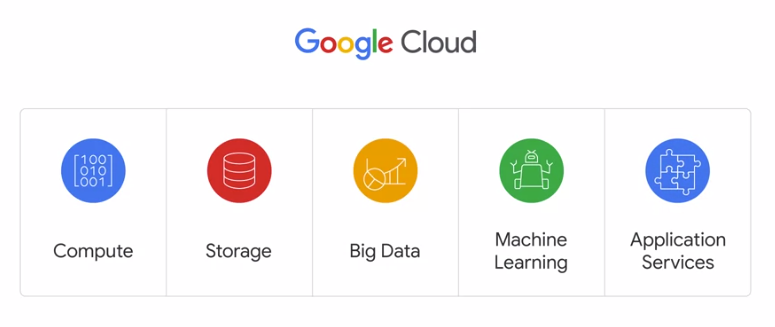

GCP service categories

gcp service categories

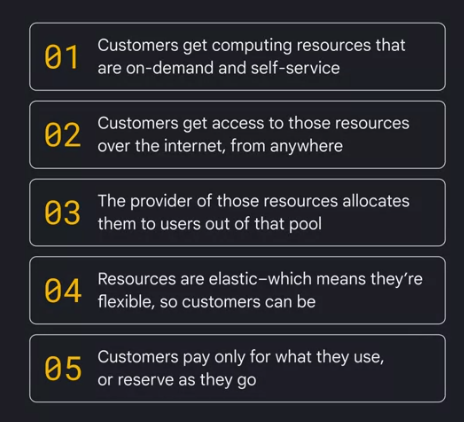

Cloud advantages

cloud advantages

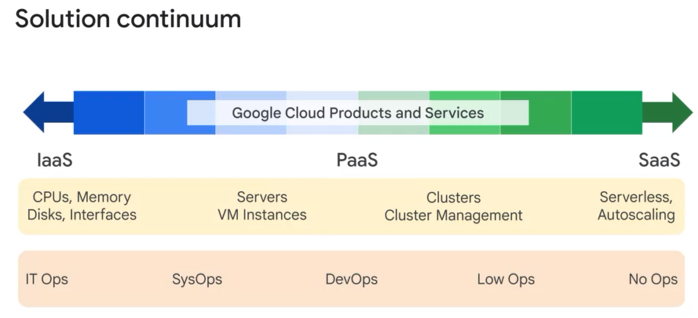

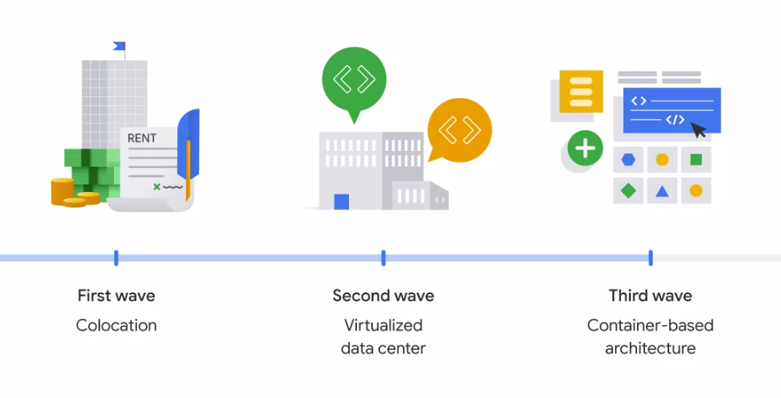

Evolution of cloud

evolution of cloud

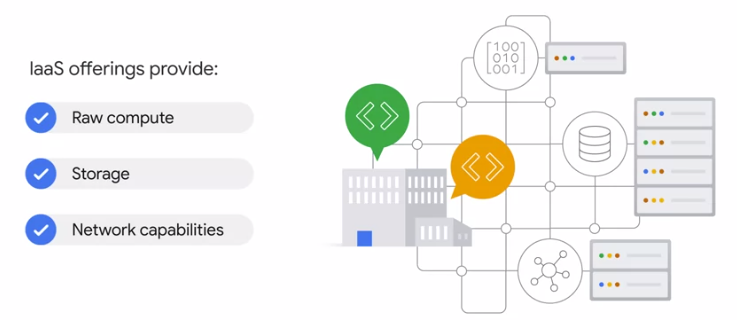

Infrastructure as service

IaaS : Pay for what they allocate
PaaS : Pay for what they use

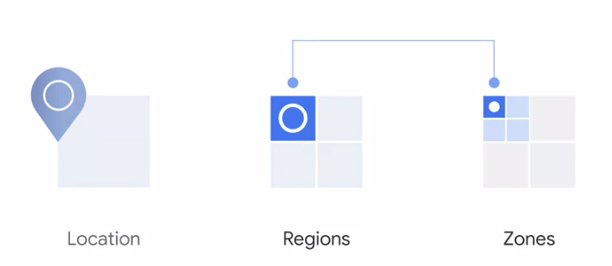

Cloud structure

cloud structure

Google's nine products have more than one billion users each. Google designs and builds its own data centers, which incorporate multiple layers of physical security protections. Access to these datacenters is limited to only a very small number of Google employees. Security features include encryption using centrally managed keys and hardware encryption in hard drives and SSDs. The GFE additionally applies protections against denial-of-service attacks. Google also has multi-tier, multi-layer DoS protections that further reduce the risk of any DoS impact on a service running behind the GFE.

Cloud cost

cloud cost

Specifically, when you run an instance for more than 25% of a month, Compute Engine automatically gives you a discount for every incremental minute you use for that instance. Custom virtual machine types allow Compute Engine virtual machines to be fine tuned with optimal amounts of vCPU and memory for the applications so that you can tailor your pricing for your workloads.

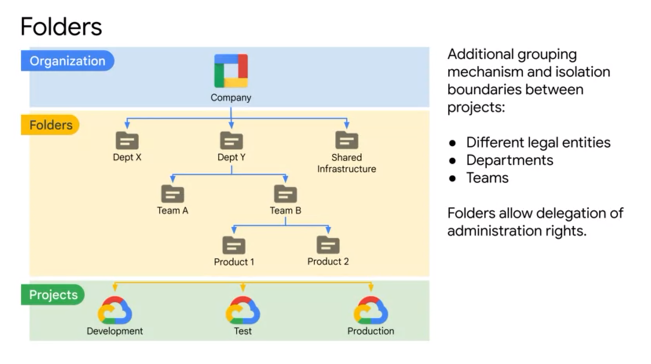

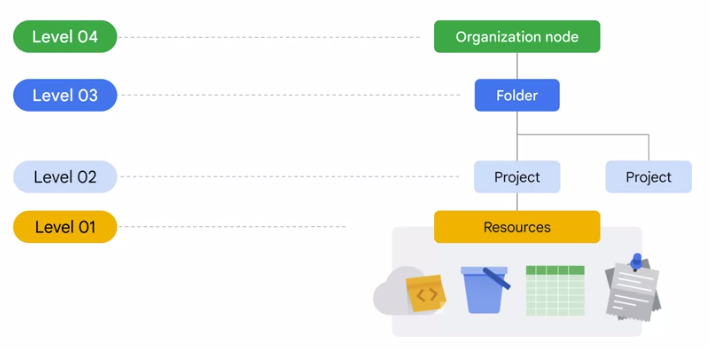

Project structure GCP

project structure gcp

folder can contain sub folders
policies are applied at project, folder and org node level
some can be applied at resource level
policies are inherited downwards

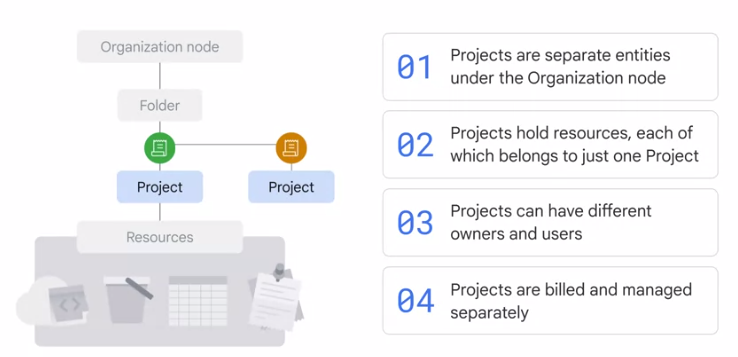

Projects in GCP

projects in GCP

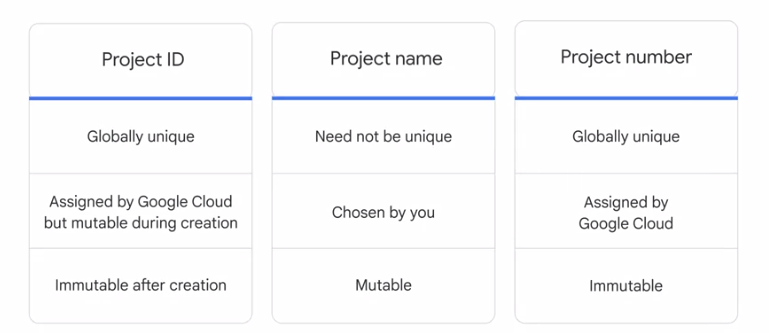

Attributes of project

project_id
project_name
project_number

Info about projects

info about projects

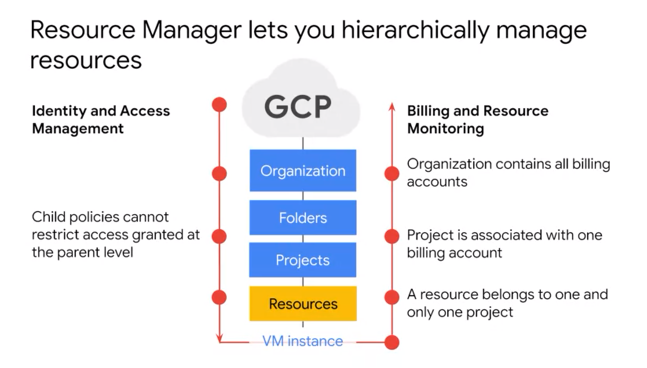

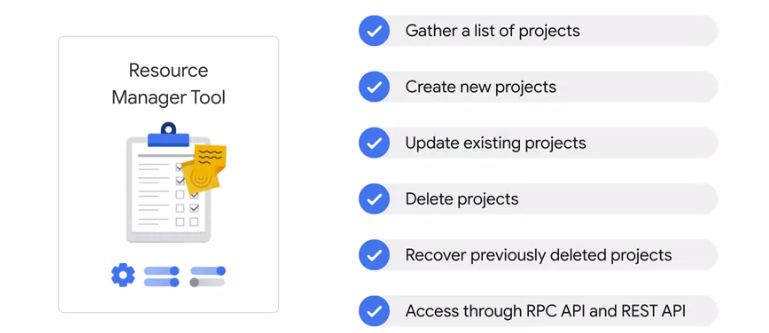

Resource manager

resource manager

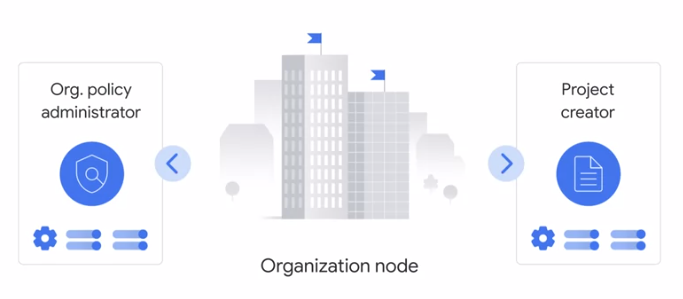

Organization nodes

organization nodes

Top level of org

top level of org

who can do what and on which part

who can be :
a google account
a google group
service account
cloud identity domain
can do what
defined by a role

Cloud IAM

Overview

Who
Can do what
On which resource

IAM objects

organizations
folders
projects
resources
roles
members

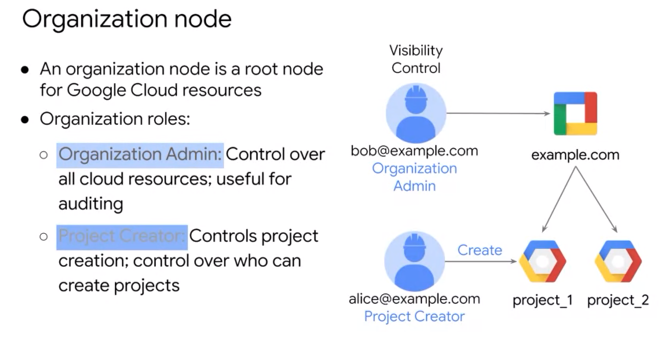

organization node

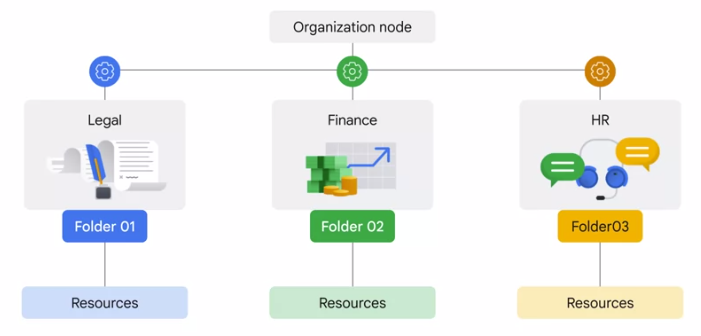

cloud project folder structure example

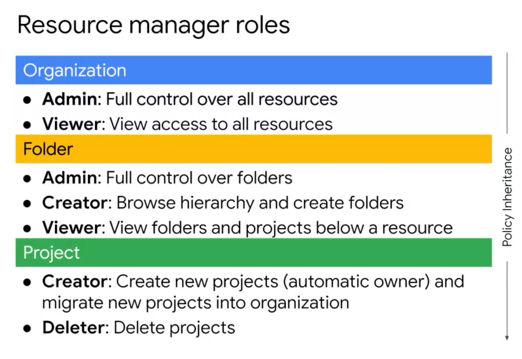

resouce manager roles

level of IAM

Predefined IAM

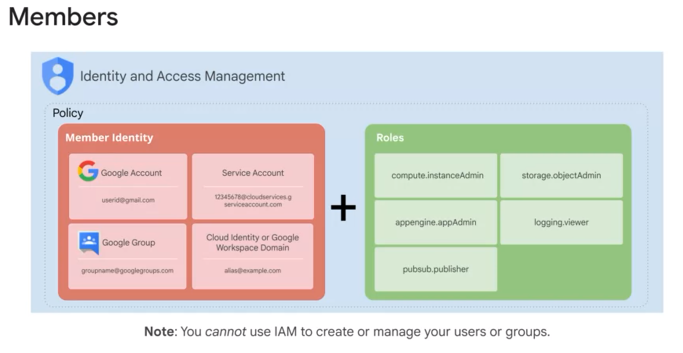

members in IAM

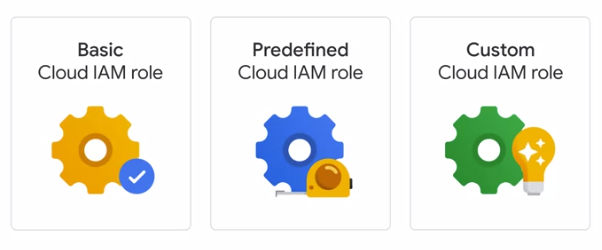

Types of IAM

types of IAM

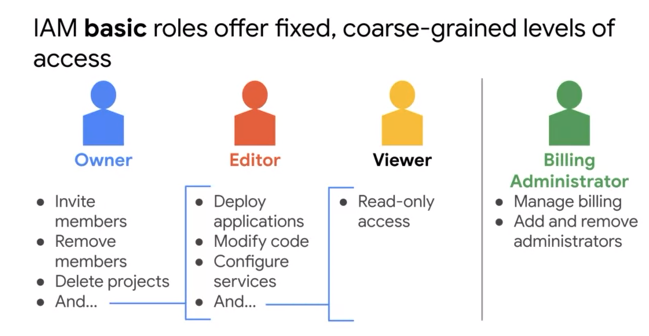

Basic role

Owner
Editor
Viewer
Billing Admin

Can be too general when working with sensitive data

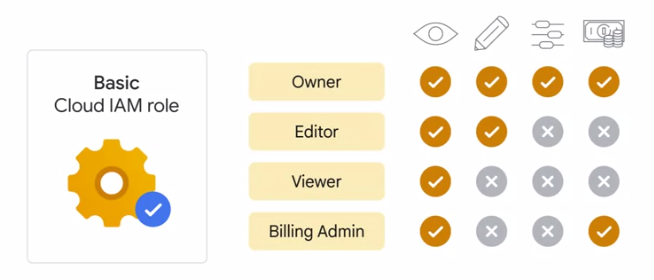

Basic IAM role

basic IAM role

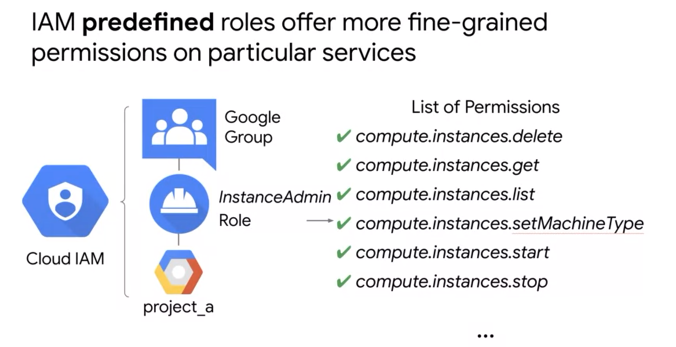

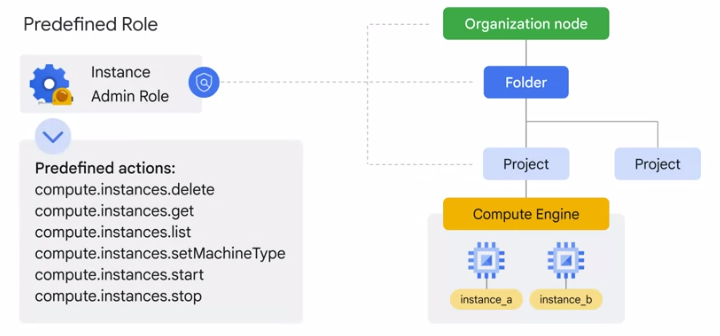

Pre-define IAM role

pre-define IAM role

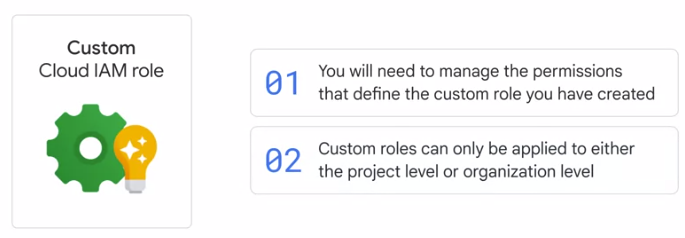

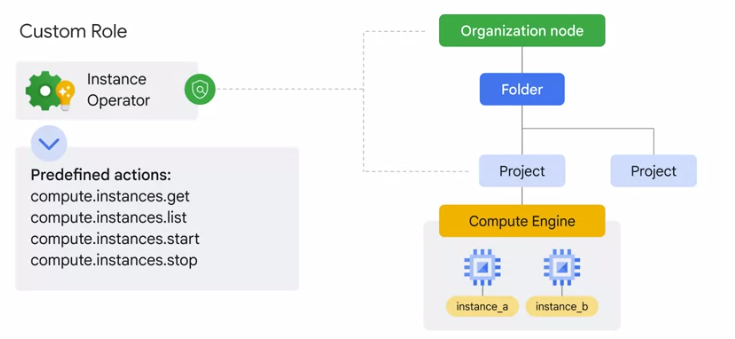

Custom IAM role

custom IAM role

Custom IAM role

custom IAM role

service accounts do need to be managed

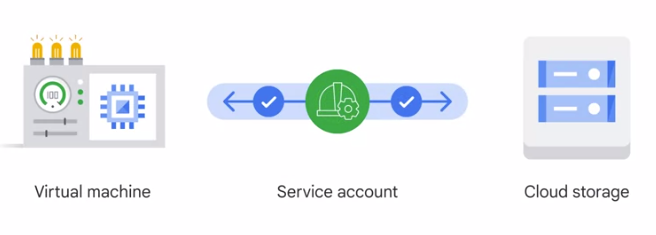

Service account

service account

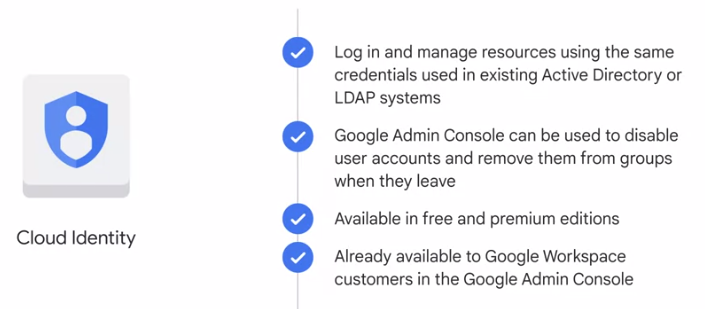

Cloud identity

more on cloud identity

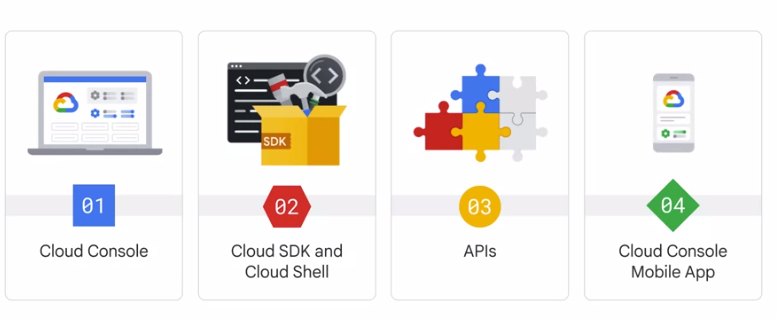

Ways to access gcp

ways to access gcp

Quiz

Q1 : When would you choose to have an organization node? (Select two)

When you want to create folders
When you want to centrally apply organization-wide policies

Q2 : Which statement best describes how Google Cloud resources are associated within the resource hierarchy?

Google Cloud resources are not associated with the resource hierarchy.

Q3 : Consider a single hierarchy of Google Cloud resources. Which of these situations is possible? (Choose 3 responses.)

There is no organization node, and there are no folders.
There is an organization node, and there is at least one folder.

Your company has two Google Cloud projects and you want them to share policies. What is the least error-prone way to set this up?

Define the new shared policy in the organization node.

Q5 : What is the difference between Identity and Access Management (IAM) basic roles and IAM predefined roles?

Basic roles can only be granted to single users. Predefined roles can be associated with a group.

Q6 : Select the option that displays IAM roles from general to specific.

Predefined roles, custom roles, basic roles

Q7 : How does the resource hierarchy control how IAM policies are inherited?

IAM policies are only implemented at the project level; they cannot be amended by lower levels of the resource hierarchy.

Q8 : Which way of accessing Google Cloud lets you control services through the code you write?

APIs

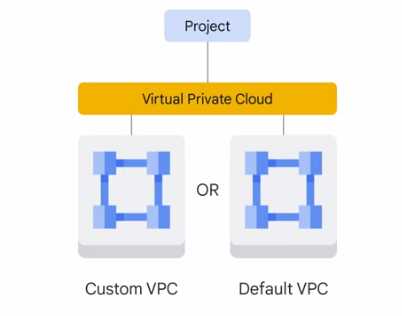

Type of VPC

type of VPC

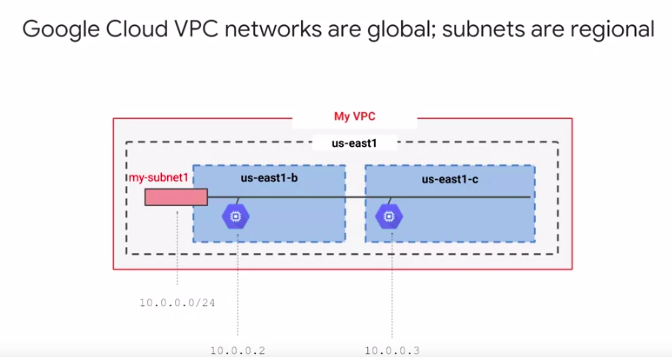

Virtual Private Cloud Network ( VPC )

what is vpc

info on VPC

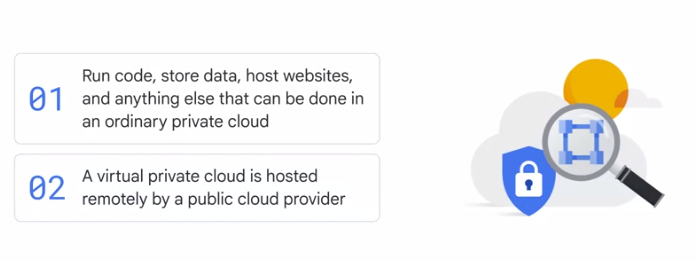

A virtual private cloud (VPC) is a secure, isolated private cloud hosted within a public cloud. VPC customers can run code, store data, host websites, and do anything else they could do in an ordinary private cloud, but the private cloud is hosted remotely by a public cloud provider. (Not all private clouds are hosted in this fashion.) VPC's combine the scalability and convenience of public cloud computing with the data isolation of private cloud computing.

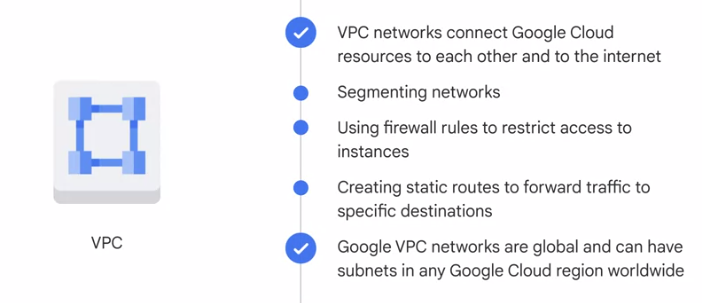

You can

segment your networks
use firewall rules to restrict access to instances
create static routes to forward traffic to specific destinations.

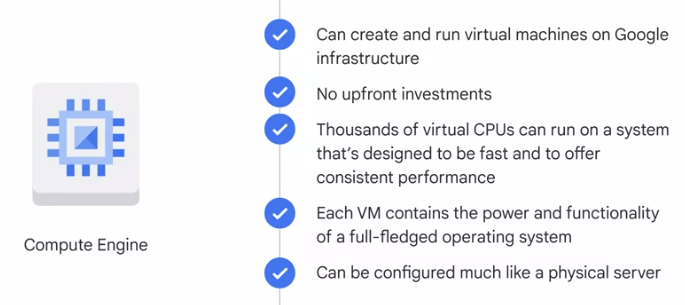

Compute Engine

Compute Engine lets you create and run virtual machines on Google infrastructure.

what is compute engine

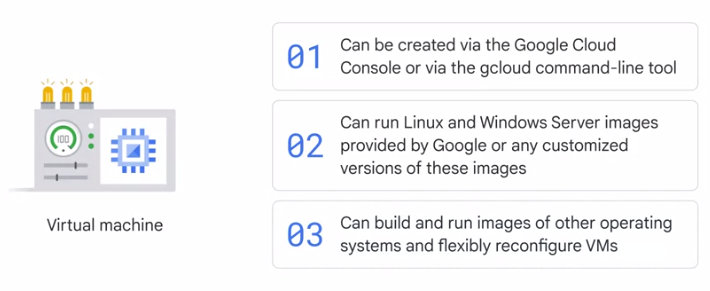

What are virtual machine

what are virtual machine

VM and disk relation

vm and disk relation

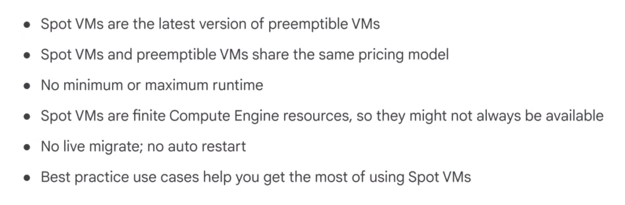

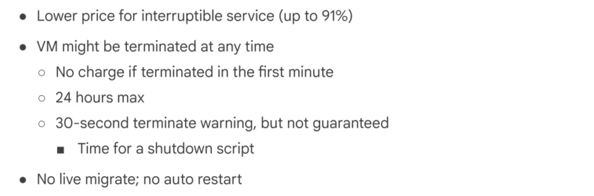

A preemptible VM is different from an ordinary Compute Engine VM in only one respect. Compute Engine has permission to terminate a job if its resources are needed elsewhere. Although savings are possible with preemptible VMs, you need to ensure that your job can be stopped and restarted. In terms of storage, Compute Engine doesn't require a particular option or machine type to get high-throughput between processing and persistent disks.

Let's say, you have a workload that doesn't require a human to sit and wait for it to finish, such as a batch job analyzing a large dataset. You can save money, in some cases up to 90 percent by choosing preemptible VMs to run the job

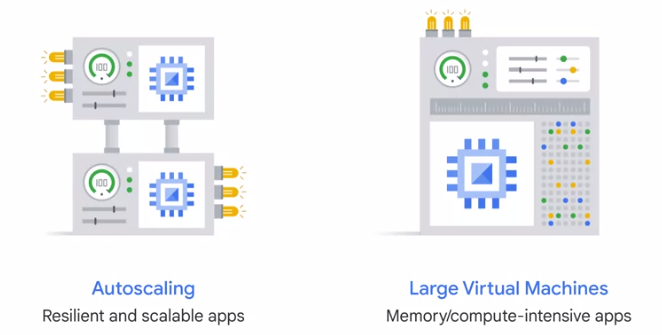

Autoscale vs manual scale

autoscale vs manual scale

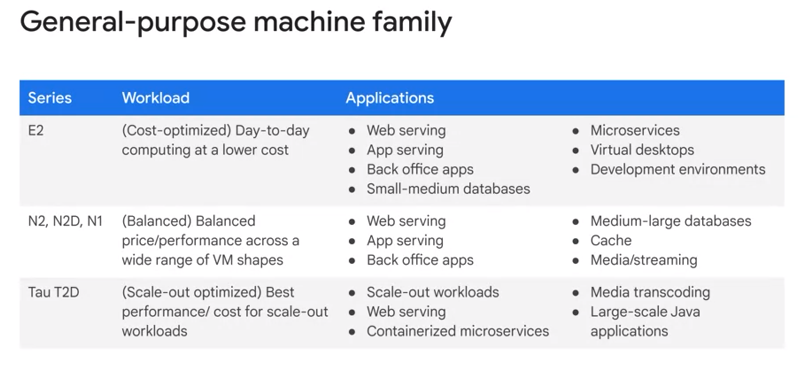

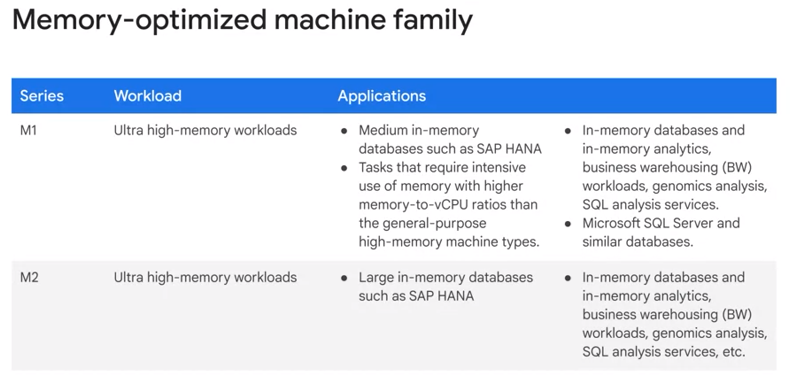

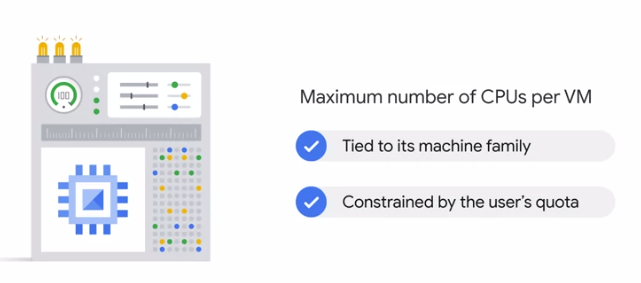

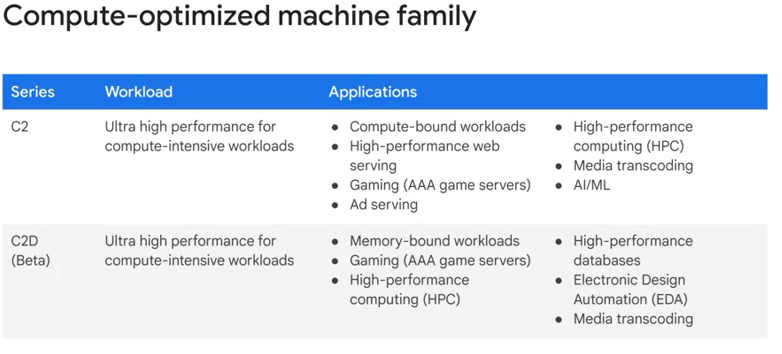

VM upper limit

vm upper limit

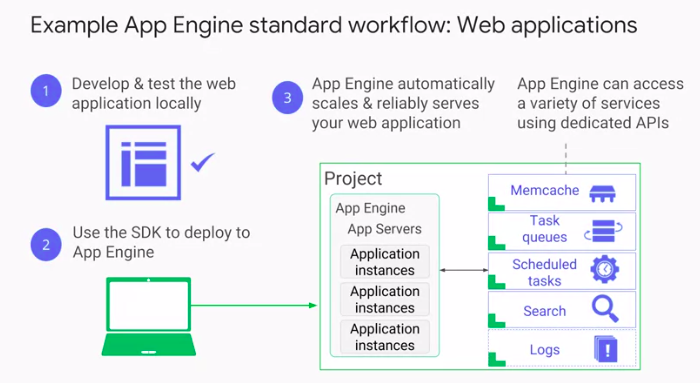

App Engine

The App Engine platform manages the hardware and networking infrastructure required to run your code. To deploy an application on App Engine, you just hand App Engine your code and the App Engine service takes care of the rest.

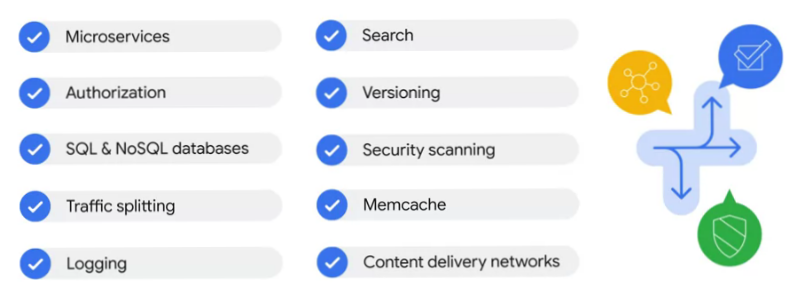

App Engine provides you with a built-in services that many web applications need. App engine will scale your application automatically in response to the amount of traffic it receives. App Engine is especially suited for applications where the workload is highly variable or unpredictable like web applications and mobile backend.

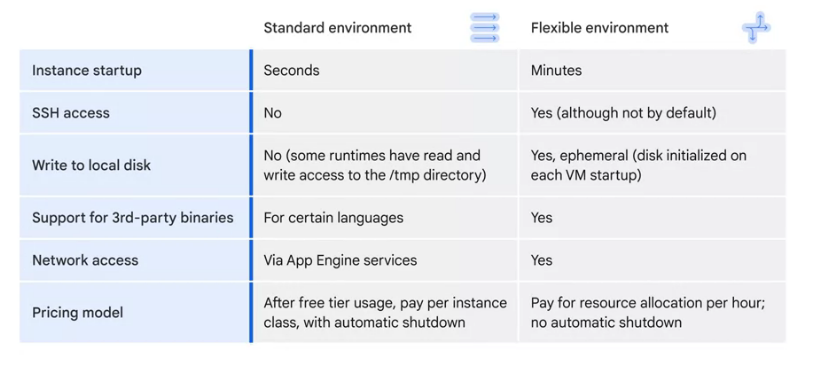

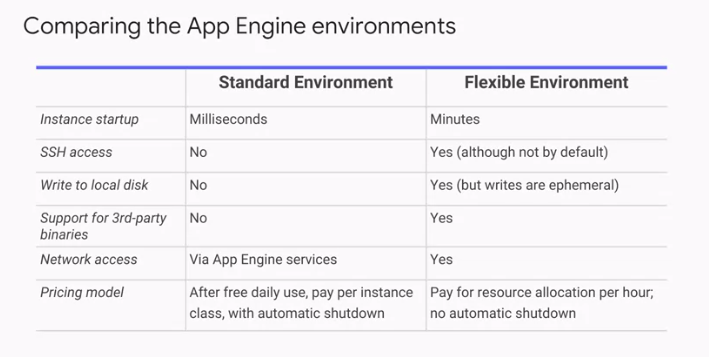

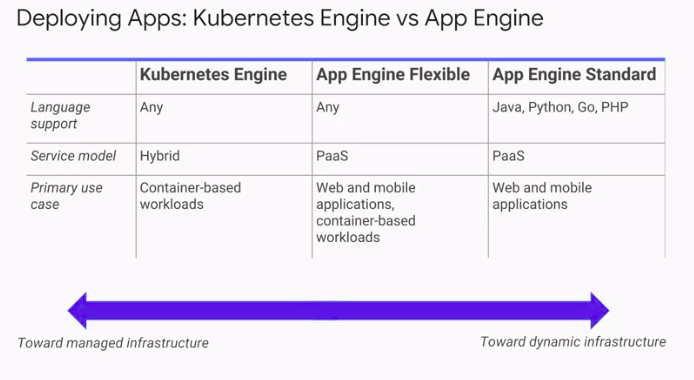

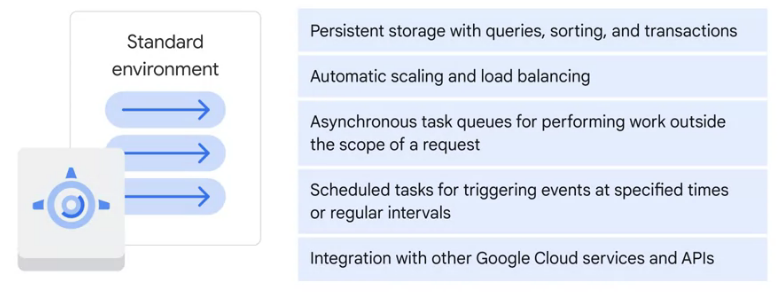

App Engine offers two environments: standard and flexible.

Standard is the simpler. It offers a simpler deployment experience than the Flexible environment and fine-grained auto-scale. Low utilisation applications might be able to run at no charge. Google provides App Engine SDK's in several languages, so that you can test your application locally before you upload it to the real App Engine service. The SDK's also provide simple commands for deployment.
In App Engine SE, you use a runtime provided by Google. App Engine Standard Environment provides runtimes for specific versions of Java, Python, PHP and Go. The runtimes also include libraries that support App Engine APIs. The Standard Environment also enforces restrictions on your code by making it run in a so-called "Sandbox." That's a software construct that's independent of the hardware, operating system, or physical location of the server it runs on.

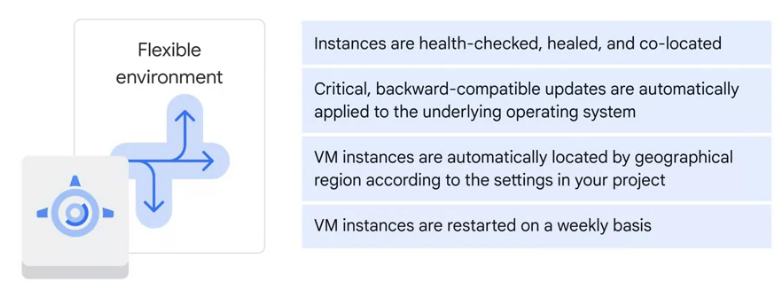

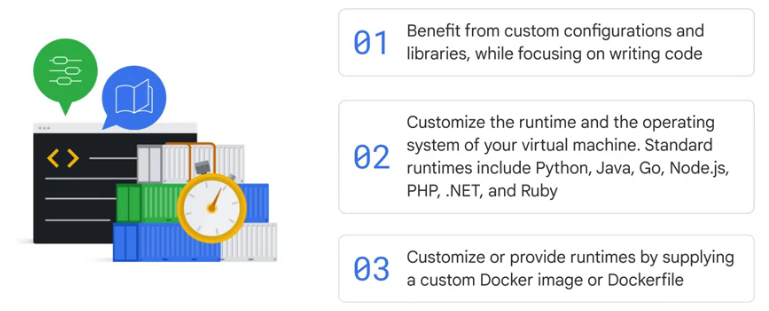

App Engine flexible environment lets you specify the container your App Engine runs in. App Engine manages these Compute Engine machines for you. They're health checked, healed as necessary, and you get to choose which geographical region they run in, and critical backward-compatible updates to their operating systems are automatically applied. All this so that you can just focus on your code.

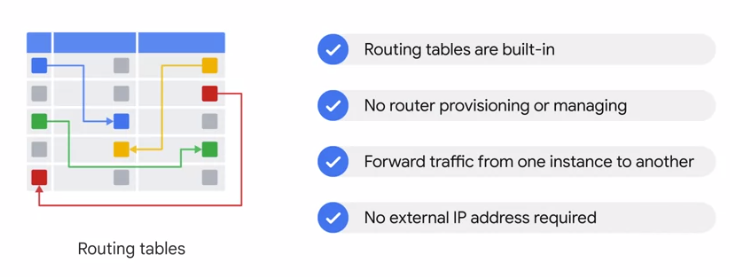

Routing tables

routing tables

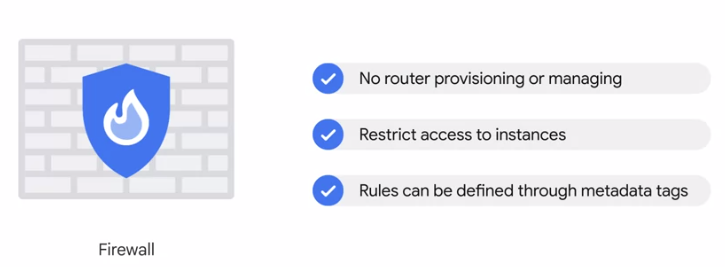

Firewall in GCP

firewall in GCP

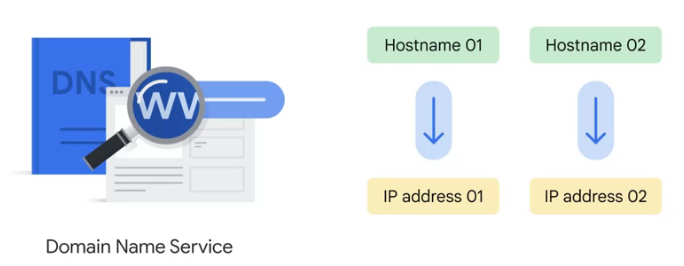

DNS

Google's DNS

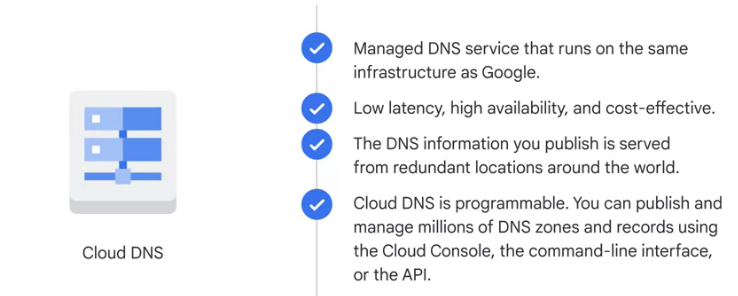

Managed DNS

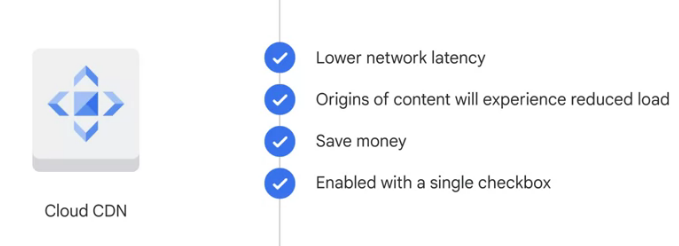

Cloud CDN

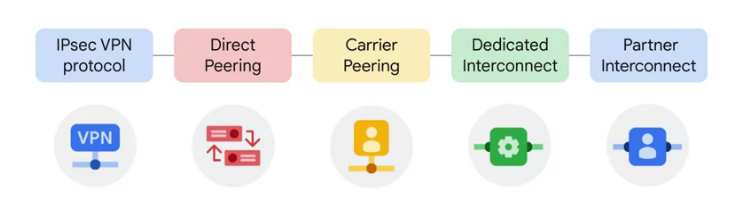

type of networking

IPsec VPN protocol

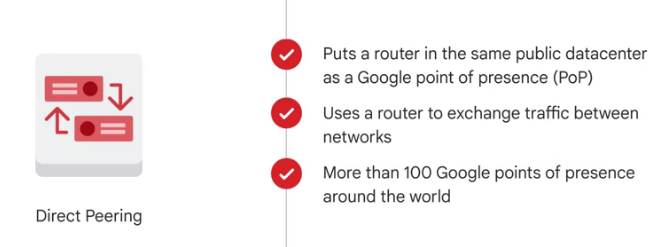

Direct peering

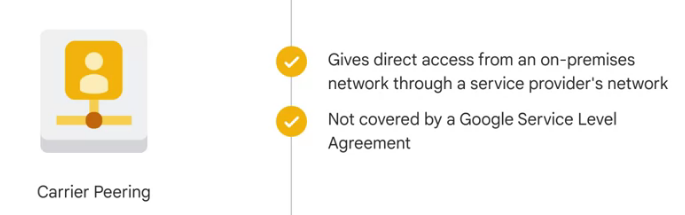

Carrier peering

carrier peering

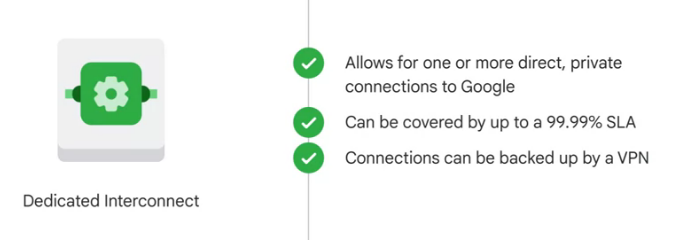

Dedicated interconnect

dedicated interconnect

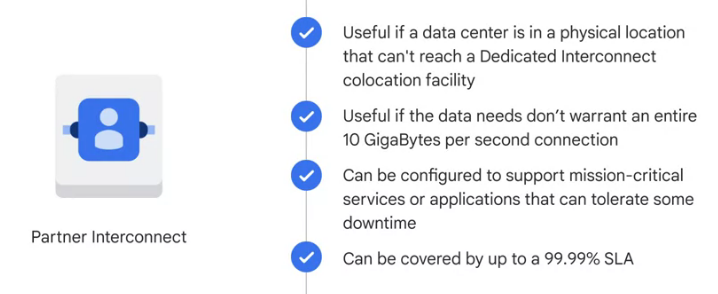

Partner interconnect

partner interconnect

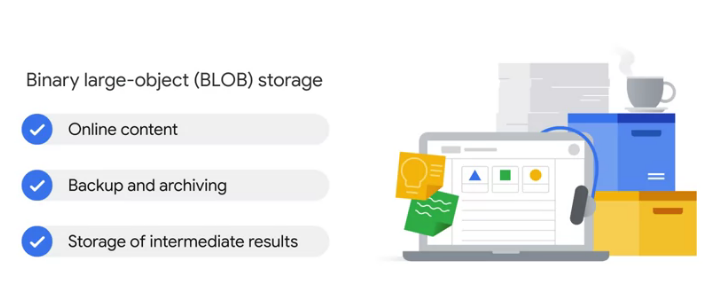

Blob in storage bucket

blob in storage bucket

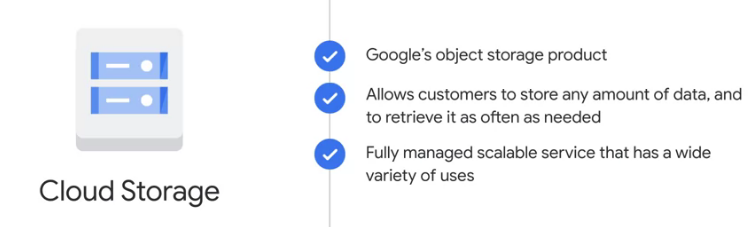

GCP cloud storage bucket

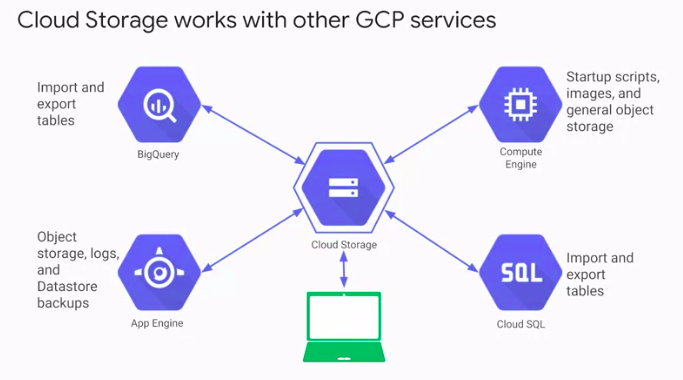

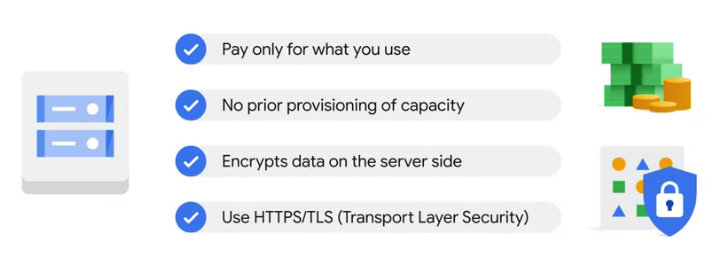

Why use cloud storage

why use cloud storage

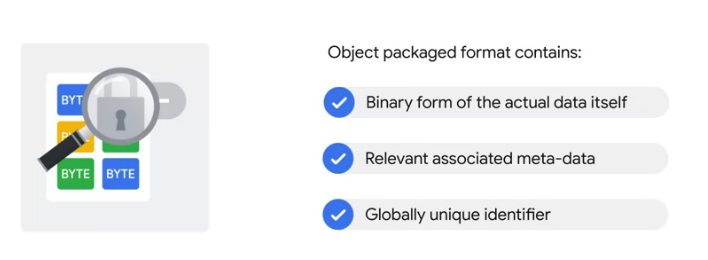

Blob

blob

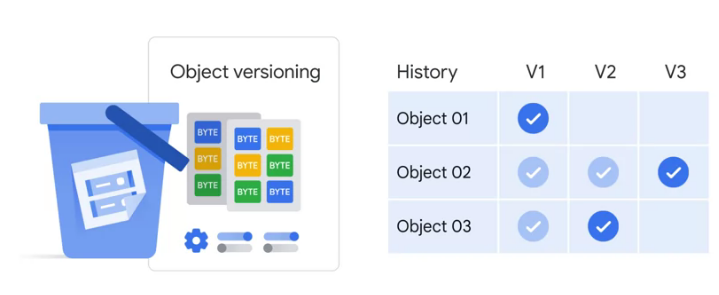

Object version in storage bucket

object version in storage bucket

Object versioning

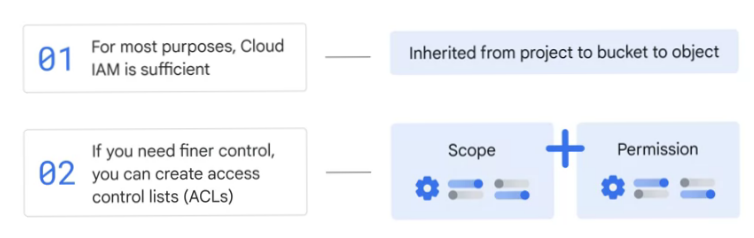

Scope and permisson object storage

scope and permisson object storage

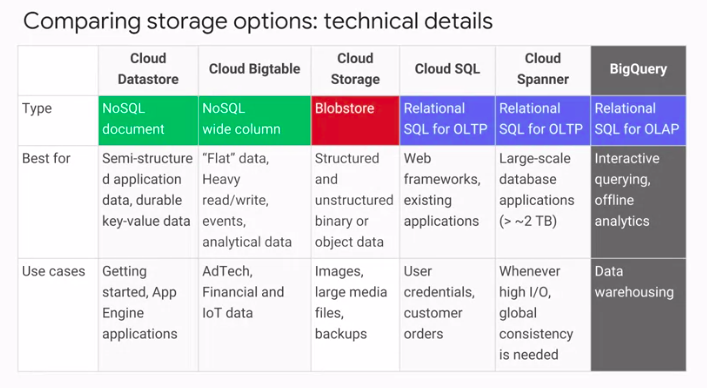

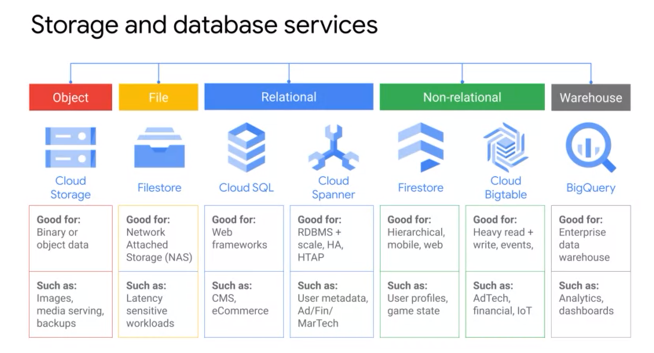

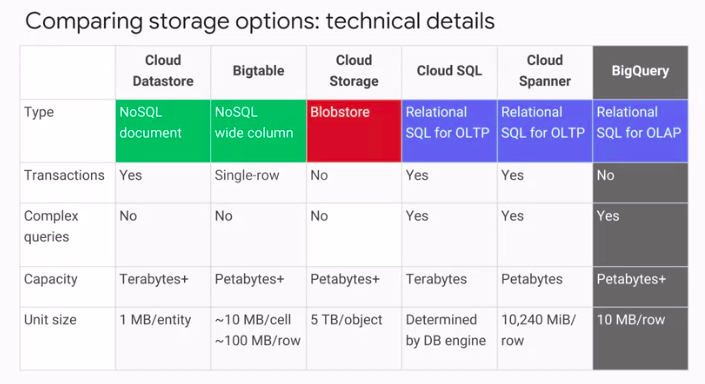

Type of storage options

type of storage options

Type of storage options

type of storage options

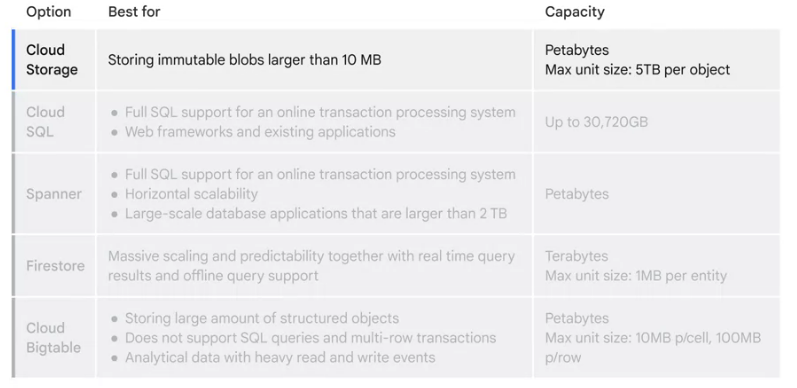

Storage options

storage options

Database & Storage :

Cloud Bigtable uses the interface of the open source database Apache HBase.
Cloud Dataproc offers the open source big data environment Hadoop, as a managed service.
Cloud storage allows you to save data and files.

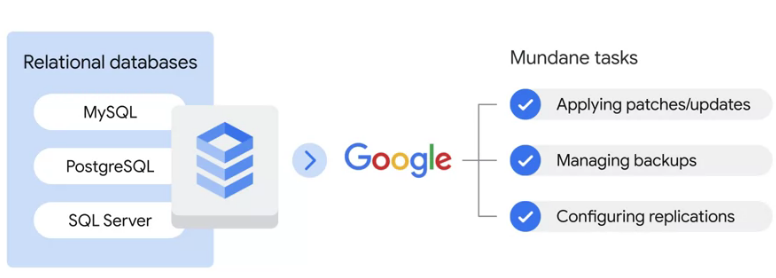

Cloud SQL is a fully managed service that makes it easy to set up, manage, and administer relational databases: PostgreSQL, MySQL, and SQL Server.
Cloud Spanner is a NewSQL database developed by Google.
Cloud Datastore is a highly scalable, fully managed NoSQL database service.

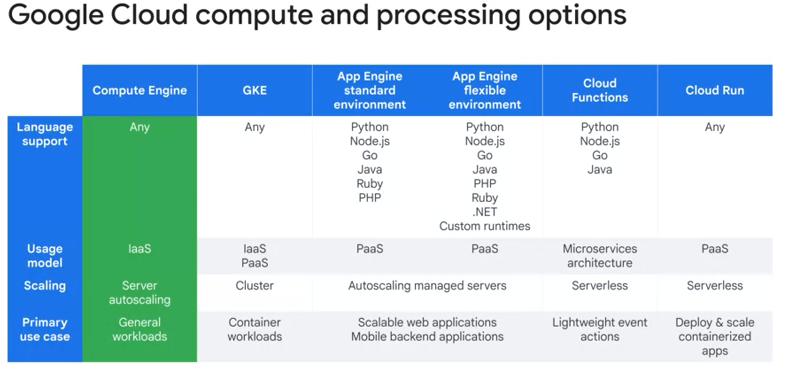

Compute :

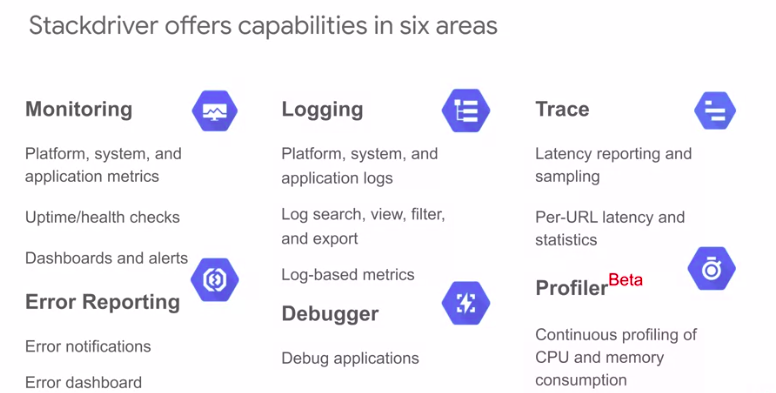

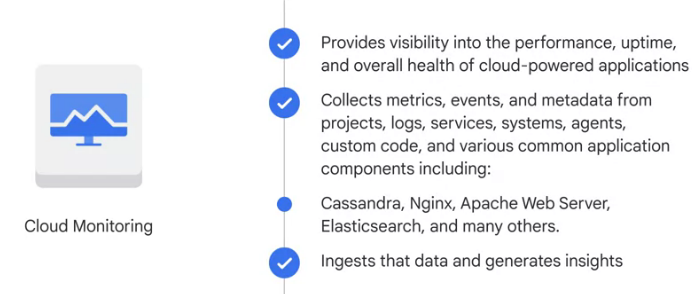

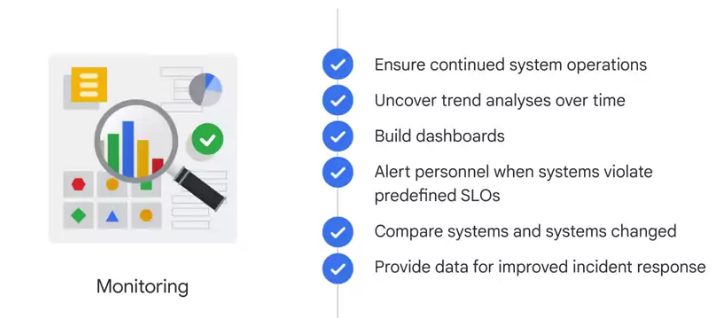

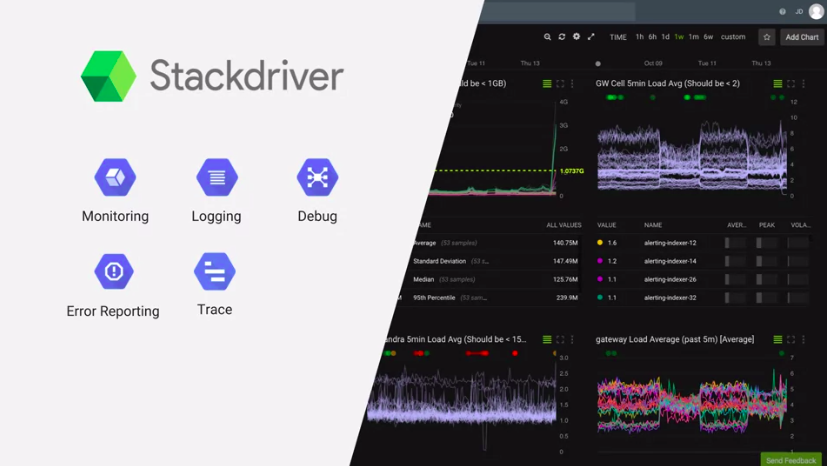

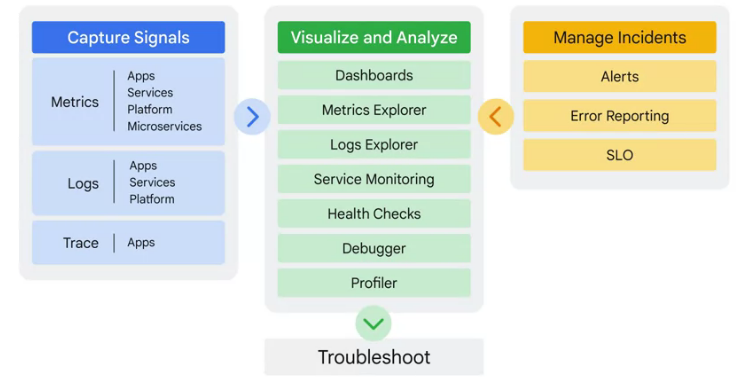

Google Stackdriver lets customers monitor workload across multiple cloud providers.
Compute Engine lets you create and run virtual machines on Google infrastructure.

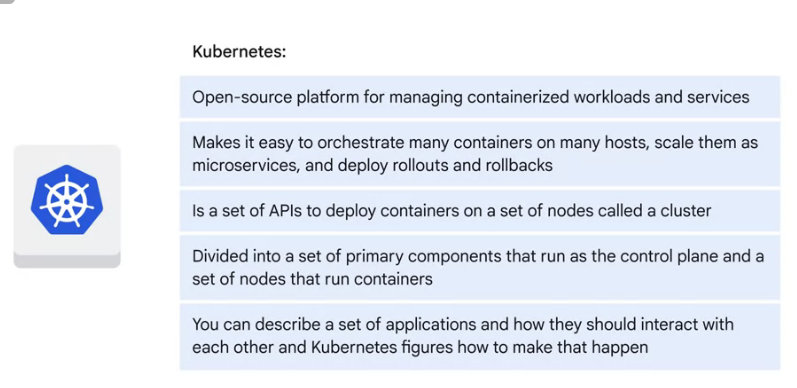

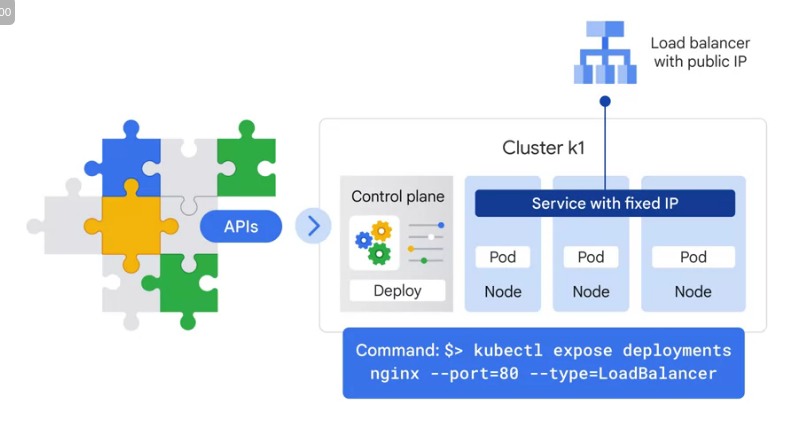

Kubernetes Engine secure and managed Kubernetes service.
App Engine fully managed application runtime. Standard & Flexible.

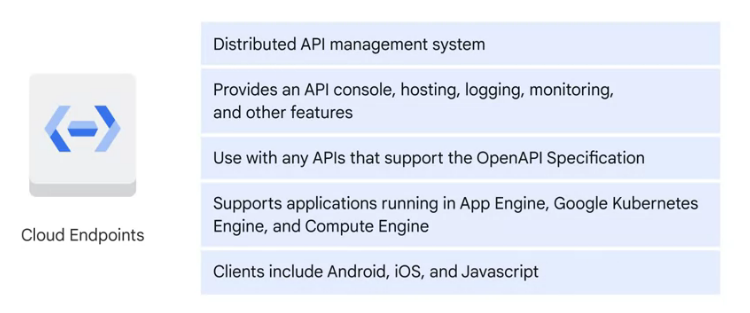

Cloud Endpoint Develop, deploy, protect, and monitor your APIs with Cloud Endpoints.

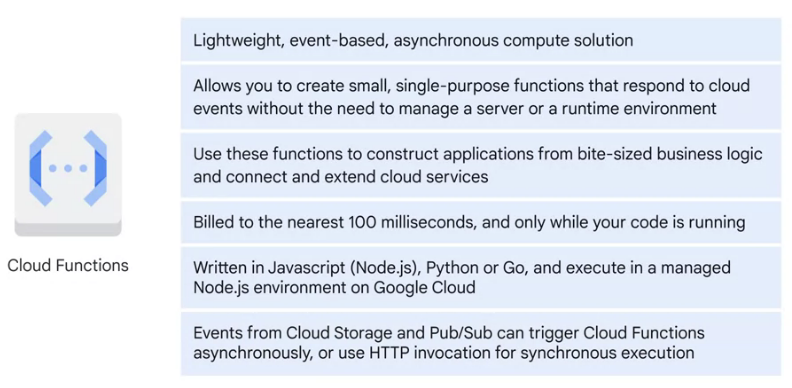

Cloud Functions Scalable pay-as-you-go (FaaS) to run your code with zero server management.

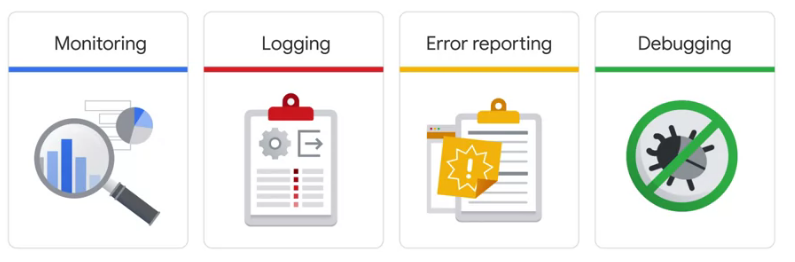

Code & Monitoring

Cloud Source Repository Fully featured Git Repo hosted on GCP

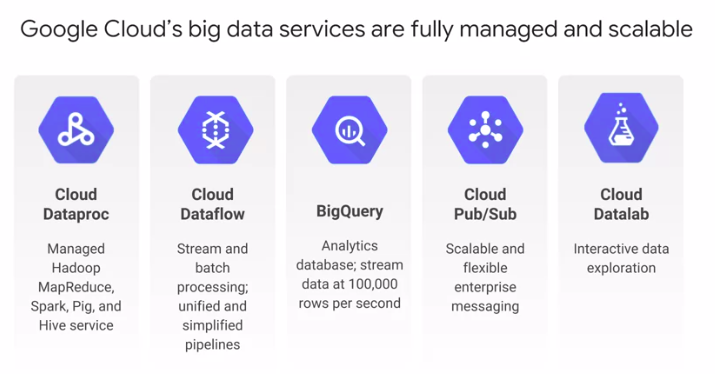

Google Cloud Big Data Platform

Cloud Dataflow fully managed streaming analytics service that minimizes latency, processing time, and cost through autoscaling and batch processing.
Big Query serverless, highly scalable, and cost-effective data warehouse designed to help you turn big data into informed business decisions.
Cloud Pub/Sub Messaging and ingestion for event-driven systems and streaming analytics.
Cloud DataLab easily explore, visualize, analyze, and transform data using familiar languages, such as Python and SQL

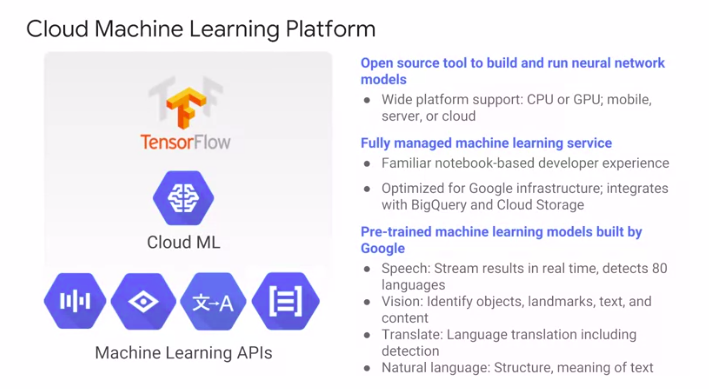

Google Cloud Machine Learning Platform

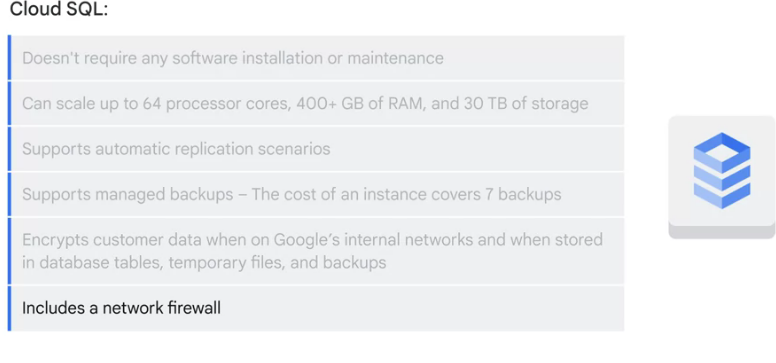

Cloud SQL

More info on cloud SQL

more info on cloud SQL

Intro to cloud spanner

intro to cloud spanner

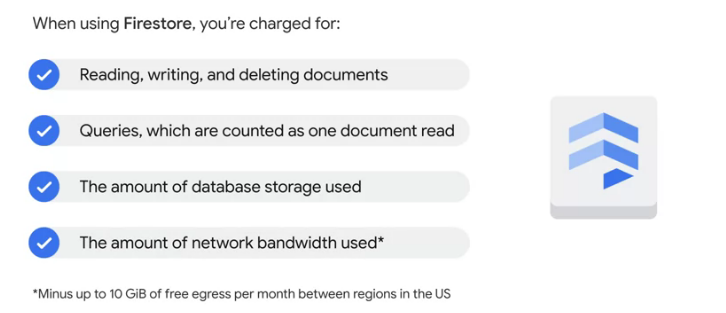

Intro to firestore

intro to firestore

Intro to bigtable

intro to bigtable

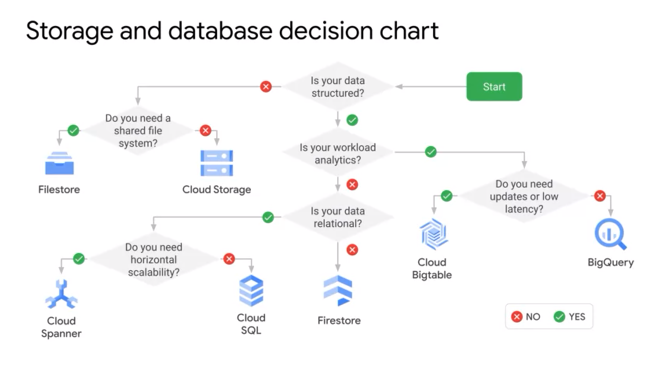

Type database to choose

type database to choose

Google Cloud Storage

What's object storage? It's not the same as file storage, in which you manage your data as a hierarchy of folders. It's not the same as block storage, in which your operating system manages your data as chunks of disk. Instead, object storage stores arbitrary bunch of bytes with a unique key. often in the form of URLs which means object storage interacts nicely with Web technologies. It's a fully managed scalable service.

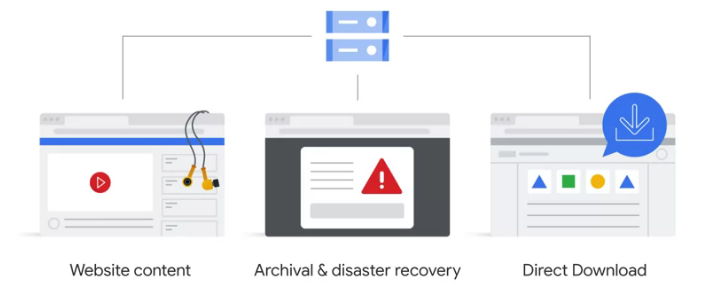

Use case

serving website content
storing data for archival and disaster recovery
distributing large data objects to your end users via Direct Download.

It is comprised of buckets you create and configure and use to hold your storage objects. The storage objects are immutable, you create new versions every time you update. Data in-transit is encrypted using HTTPS.

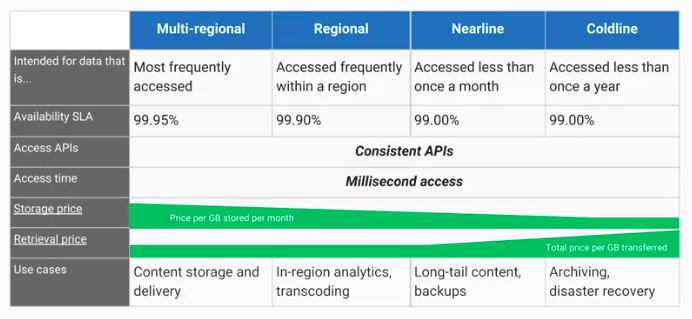

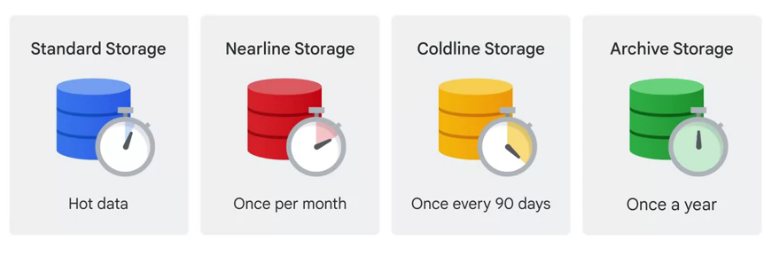

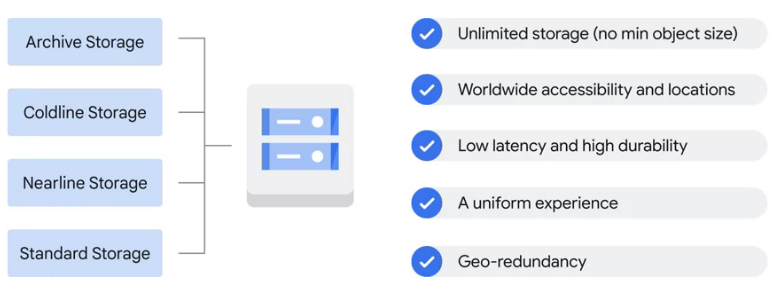

Cloud Storage classes

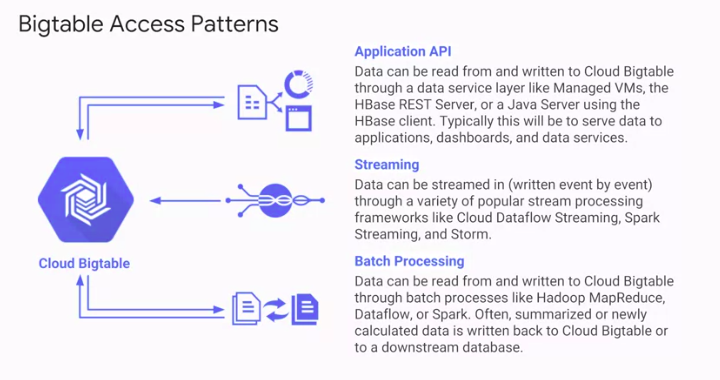

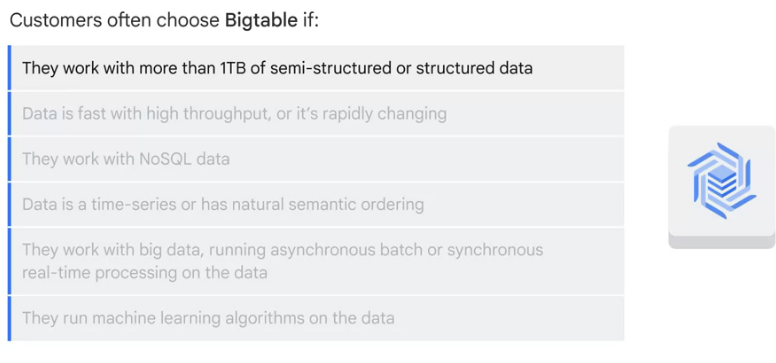

Cloud Bigtable

Cloud Bigtable is Google's NoSQL, big data database service.

Your databases in Bigtable are sparsely populated tables that can scale to billions of rows and thousands of columns allowing you to store petabytes of data. GCP fully manages the surface. It's ideal for data that has a single lookup key.

Some applications developers think of Bigtable as a persistent hash table. Cloud Bigtable is ideal for storing large amounts of data with very low latency. It supports high throughput, both read and write,

Use cases :

Internet of Things
user analytics
financial data analysis.

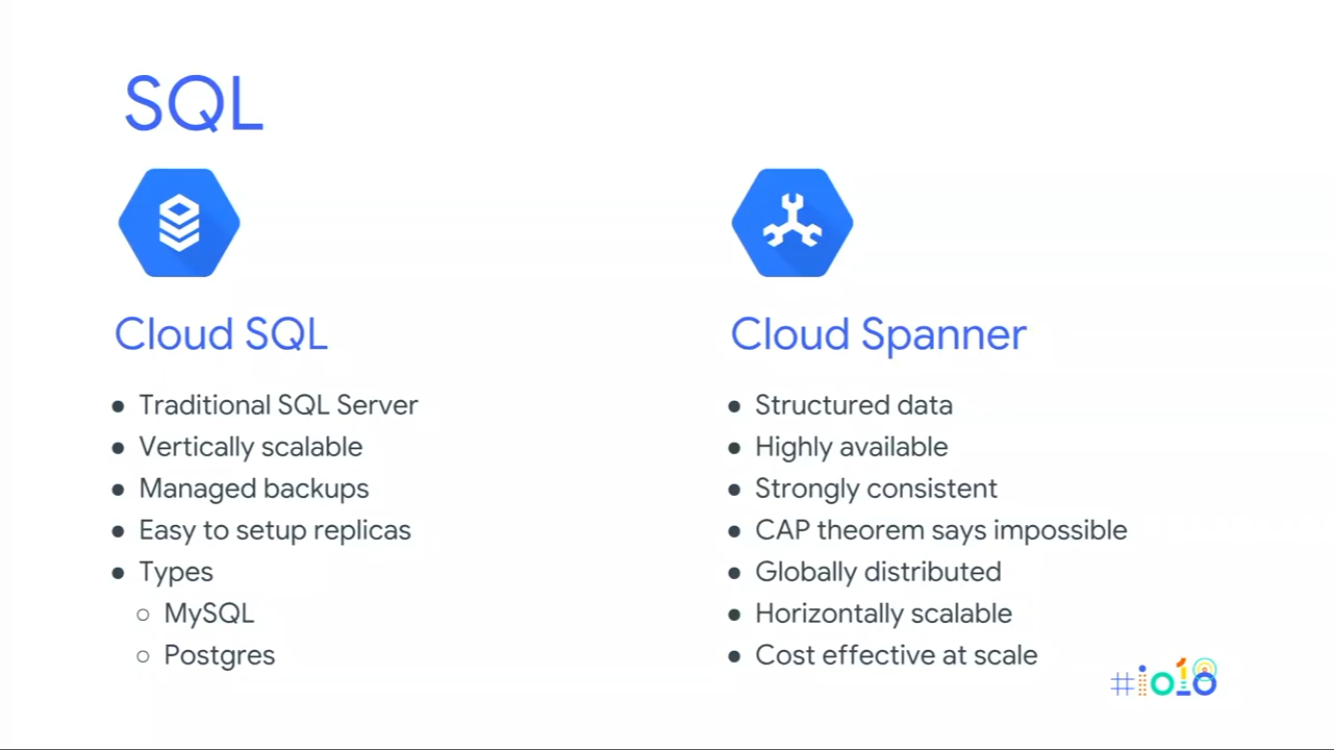

Cloud SQL & Cloud Spanner

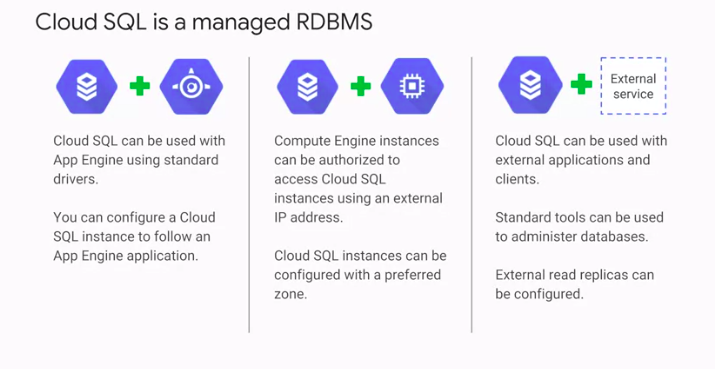

Cloud SQL offers both MySQL and PostgreSQL database engines as a fully managed service, that are capable of handling terabytes of storage.
Cloud SQL provides several replica services like read, failover, and external replicas. It can replicate data between multiple zones with automatic failover. It also helps you backup your data with either on-demand or scheduled backups. It can also scale both vertically by changing the machine type, and horizontally via read replicas.
Cloud SQL instances include network firewalls, and customer data is encrypted when on Google's internal networks, and when stored in database tables, temporary files, and backups.
They are accessible by other GCP services and even external services. You can authorise Compute Engine instances for access Cloud SQL instances and configure the Cloud SQL instance to be in the same zone as your virtual machine.
Cloud SQL also supports other applications and tools that you might be used to, like SQL WorkBench, Toad, and other external applications using standard MySQL drivers.

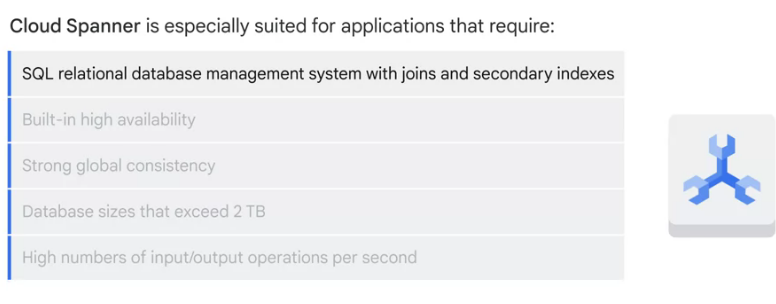

If Cloud SQL does not fit your requirements because you need horizontal scalability, consider using *Cloud Spanner*. It offers transactional consistency at a global scale, schema, SQL, and automatic synchronous replication for high availability. And, it can provide petabytes of capacity. Consider using Cloud Spanner if you have outgrown any relational database, or sharding your databases for throughput high performance, need transactional consistency, global data and strong consistency, or just want to consolidate your database.

Use cases include :
financial applications
inventory applications.

Cloud DataStore

Cloud Datastore highly scalable NoSQL database. One of its main use cases is to store structured data from App Engine apps. It is a from a fully-managed service, Cloud Datastore automatically handles sharding and replication, providing you with a highly available and durable database that scales automatically to handle load. Unlike Cloud Bigtable, it also offers transactions that affect multiple database rows, and it lets you do SQL-like queries.
